Astell & Kern SEM2 Interchangeable All-in-One DAC/AMP module for the SE180

$279.00

  • Astell & Kern SEM2 Interchangeable All-in-One DAC/AMP module
  • Astell & Kern SEM2 Interchangeable All-in-One DAC/AMP module
Up to $70 offSold out
$279.00
$279.00 $349.00
Sorry, it's out of stock.

But we can let you know when it's back in.

FAQ

How fast is shipping?

If your order is placed M-F before 5pm ET, we'll ship it out same day

What's the returns policy?

This product is Final Sale, nonreturnable. See Audio46 Express's return policy

Does this have a restocking fee?

This item does not come with a restocking fee. Other return fees could still apply.

Does it come with a warranty?

Audio46 Express purchases come with 30 day after-sales support. This item also comes with Astell & Kern's manufacturer warranty
[Description from Astell & Kern]

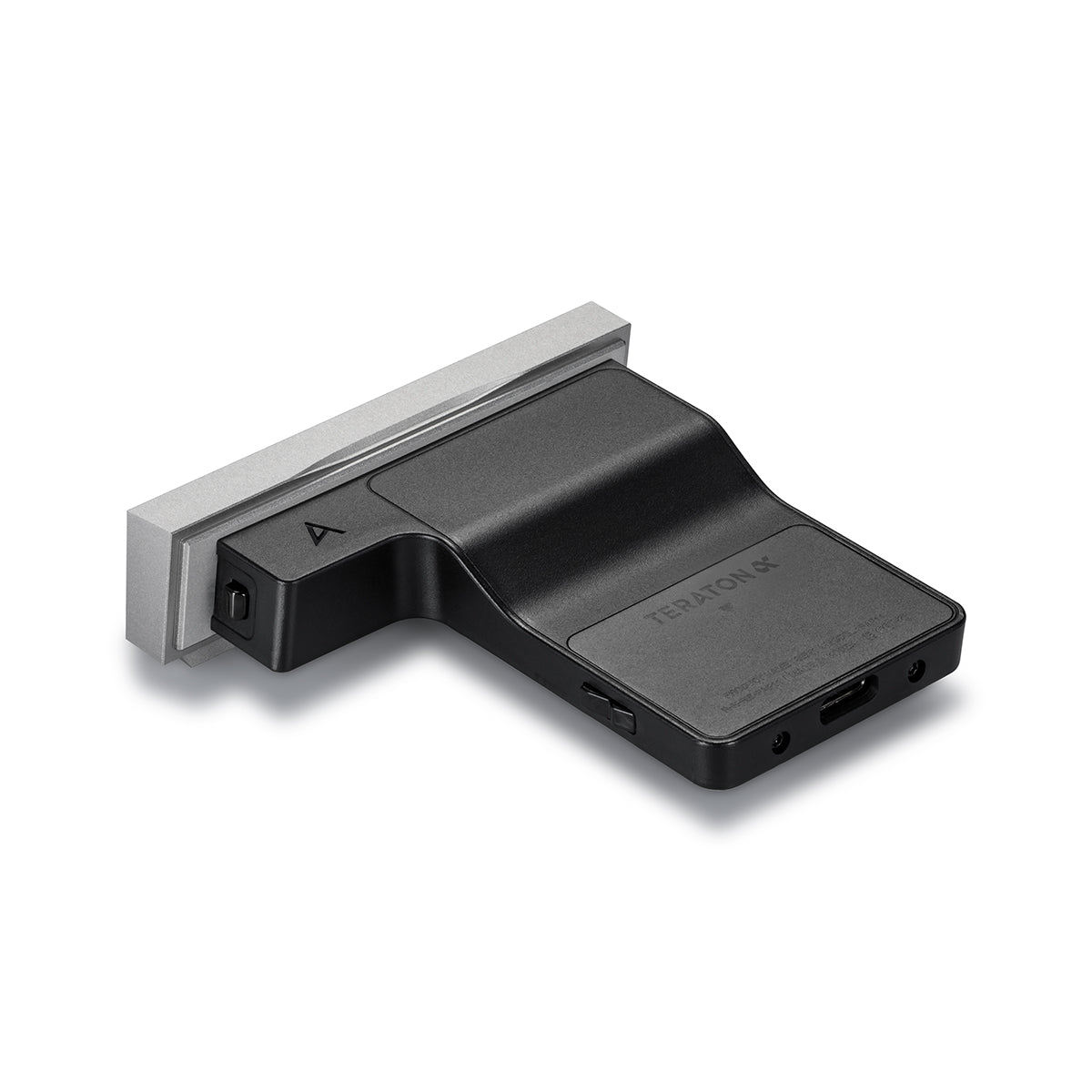

All-in-One Module SEM2

Shape your Sound with SEM2

SEM2 is an Interchangeable All-in-One module for the SE180 Shape your Sound with the Asahi Kasei AK4497EQ Dual DAC SEM2 Give your SE180 a different sound than the bundled module SEM2 supports up to 32bit/768kHz / Native DSD512

Next Generation Advanced AMP Technology

Next generation AMP technology is also applied in the SEM2 all-in-one module.

From the selection of OP-AMP parts, to circuit design, board layout and tuning, everything has been completely redesigned to produce the best sound.

Even with a high output, the signal-to-noise (SNR), one of the important measurements of audio performance, boasts an amazing 127dB (based on AK4497EQ Dual, Balanced, High Gain).

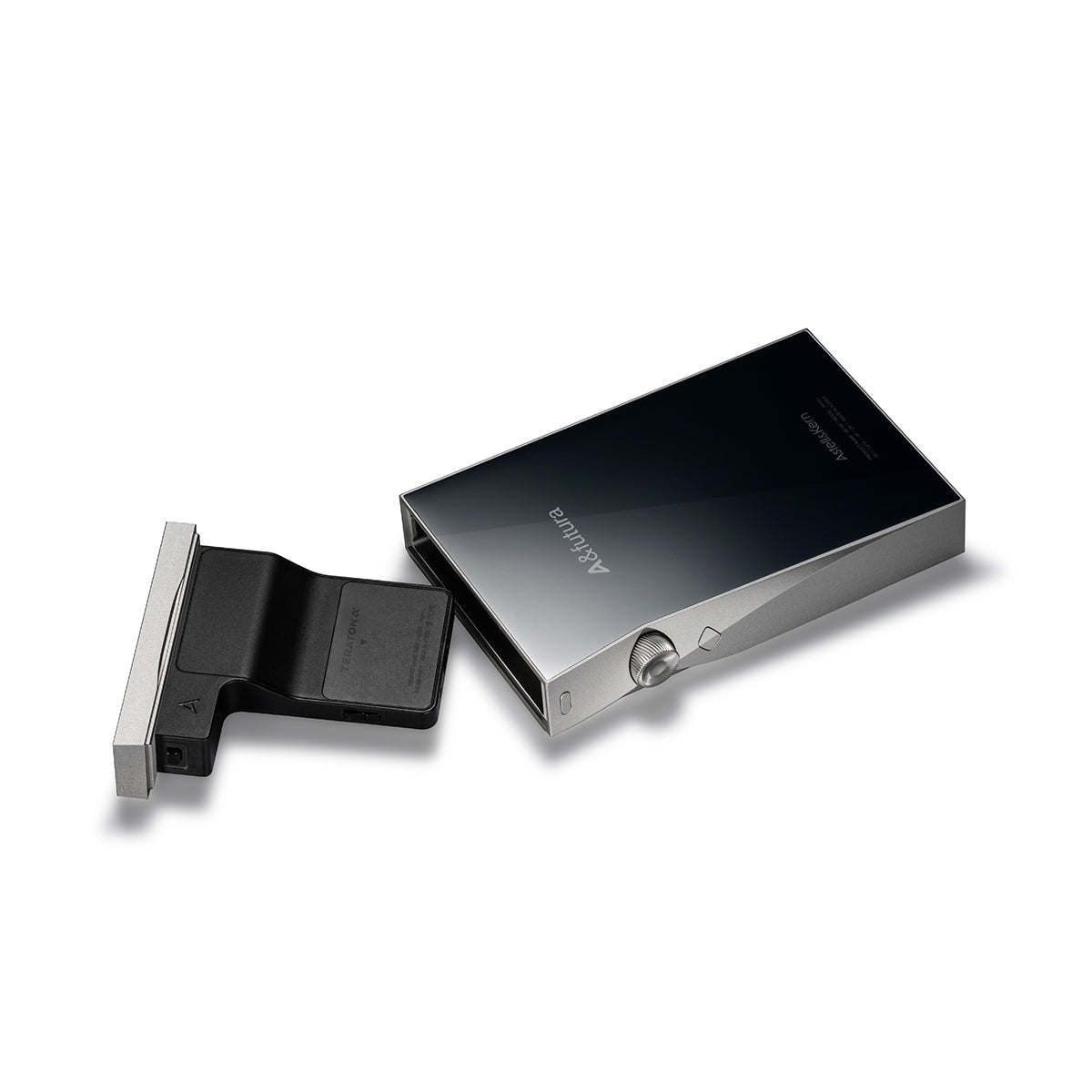

Circuit Separation Structure of Main Body and Module

By physically separating the main body from the All-in-One module, we completely block power and RF noise that may occur from the main body.
This creates an independent structure that prevents noise from interfering with music playback.

Balanced and unbalanced signals are separated for each channel to provide the best possible sound through independent circuit design without interference.

Astell&Kern Audio Technology Forms
the TERATON ALPHA Sound Solution

AK ULTIMATE SOUND SOLUTION, TERATON ALPHA

TERATON ALPHA is AK's ultimate Sound Solution to produce audio playback that is close to the original sound through the audio output interface by use of effective power noise removal, efficient power management and amplification with minimal distortion.

TERATON ALPHA features Astell&Kern's patented technologies, which are the result of tens of thousands of hours of continuous research and development to produce sound close to the original sound the artist and producer intended.

Specification

General Specifications
Product Name
SEM2
Model
PAP12
Body Material
Aluminum, Stainless Steel, Polycarbonate
Body Color
Moon Silver
Sample Rate
PCM : 8kHz ~ 768kHz (8/16/24/32bits per Sample) DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), Stereo / DSD512(1bit 22.4MHz), Stereo
Output
Unbalanced Out (3.5mm), Balanced Out (2.5mm, only 4-pole supported / 4.4mm, only 5-pole supported)
Output Level
[Normal Gain] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load) [High Gain] Unbalanced 3Vrms / Balanced 6Vrms (Condition No Load)
DAC
AKM AK4497EQ x2 (Dual DAC)
Decoding
Support up to 32bit / 768kHz Bit-to-Bit playback
Dimensions
3.03"(77mm)[W] x 2.99"(76mm)[H] x 0.78"(19.9mm)[D]
Weight
3.53oz (100g)
Operating Temperature
0℃ ~ + 40℃ (32℉~ 104℉)
Playback Time
about 10.5hours (FLAC, 16bit, 44.1kHz, Vol.50, LCD Off)
Audio Performance
Frequency Response
±0.07dB (Condition : 20Hz~20kHz) Unbalanced / ±0.06dB (Condition : 20Hz~20kHz) Balanced ±0.68dB (Condition : 20Hz~70kHz) Unbalanced / ±0.67dB (Condition : 20Hz~70kHz) Balanced
Signal to Noise Ratio
[Normal Gain] 122dB @ 1kHz, Unbalanced / 124dB @ 1kHz, Balanced [High Gain] 125dB @ 1kHz, Unbalanced / 127dB @ 1kHz, Balanced
Crosstalk
[Normal Gain] -138dB @ 1kHz, Unbalanced / -145dB @ 1kHz, Balanced [High Gain] -138dB @ 1kHz, Unbalanced / -147dB @ 1kHz, Balanced
THD+N
[Normal Gain] 0.0006% @ 1kHz, Unbalanced / 0.0005% @ 1kHz, Balanced [High Gain] 0.0008% @ 1kHz, Unbalanced / 0.0006% @ 1kHz, Balanced
IMD SMPTE
0.0002%, 800Hz 10kHz (4:1), Unbalanced / 0.0002%, 800Hz 10kHz (4:1), Balanced
Output Impedance
3.5mm (1ohm) / 2.5mm (1.5ohm) / 4.4mm (1.5ohm)
