iBasso AMP8 4.4mm Balanced Module for DX220, DX200, and DX150

$219.00
Sold out
$219.00
$219.00
Sorry, it's out of stock.

But we can let you know when it's back in.

FAQ

How fast is shipping?

If your order is placed M-F before 5pm ET, we'll ship it out same day

What's the returns policy?

Your purchase comes with Audio46 Express's 30 day return policy

Does this have a restocking fee?

This item does not come with a restocking fee. Other return fees could still apply.

Does it come with a warranty?

Audio46 Express purchases come with 30 day after-sales support. This item also comes with iBasso's manufacturer warranty
[Description from iBasso]

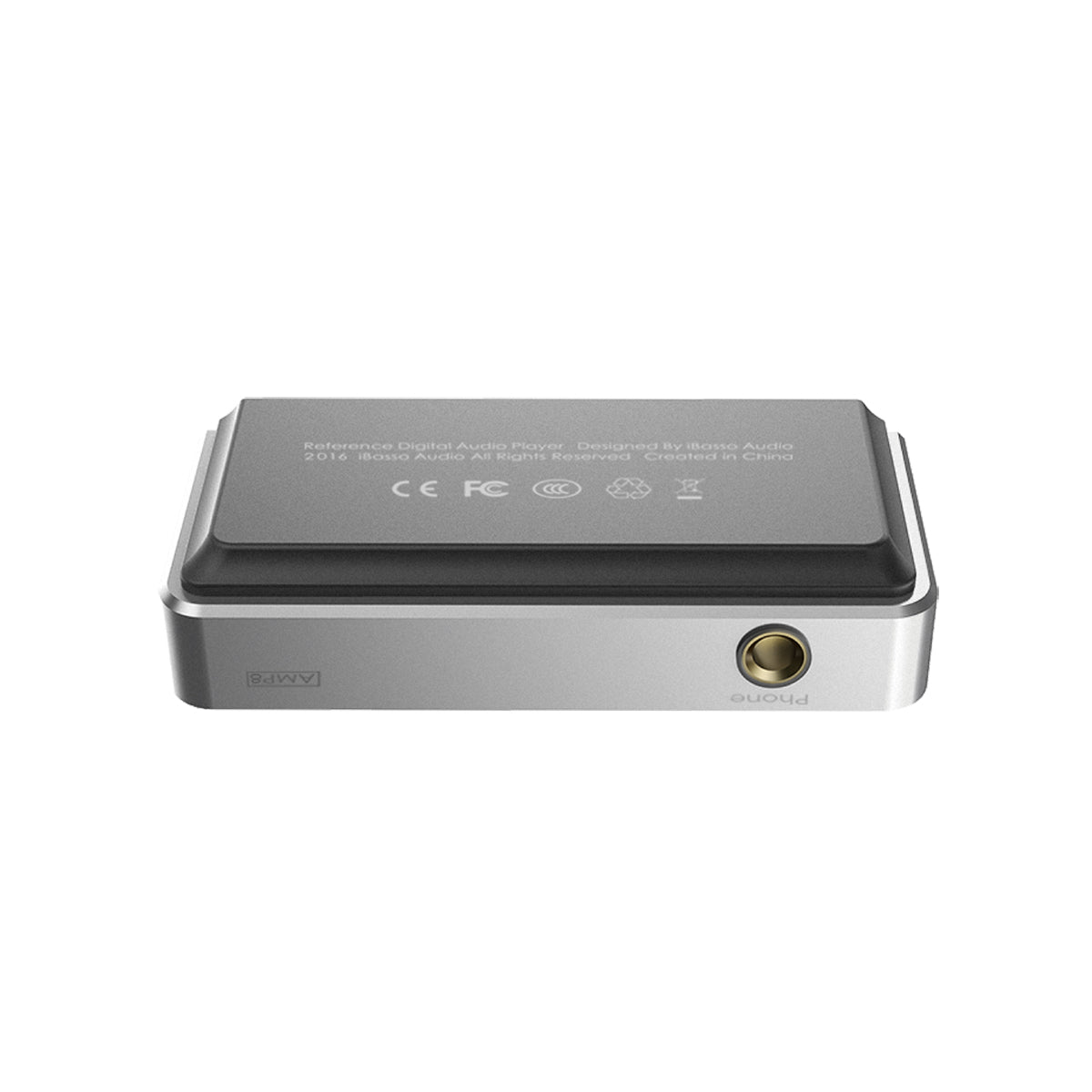

iBasso AMP8 4.4mm Balanced Discrete Amp

+/- high voltage swing. This significantly improves dynamics and headroom, resulting in a more accurate sound that is ture to the recording

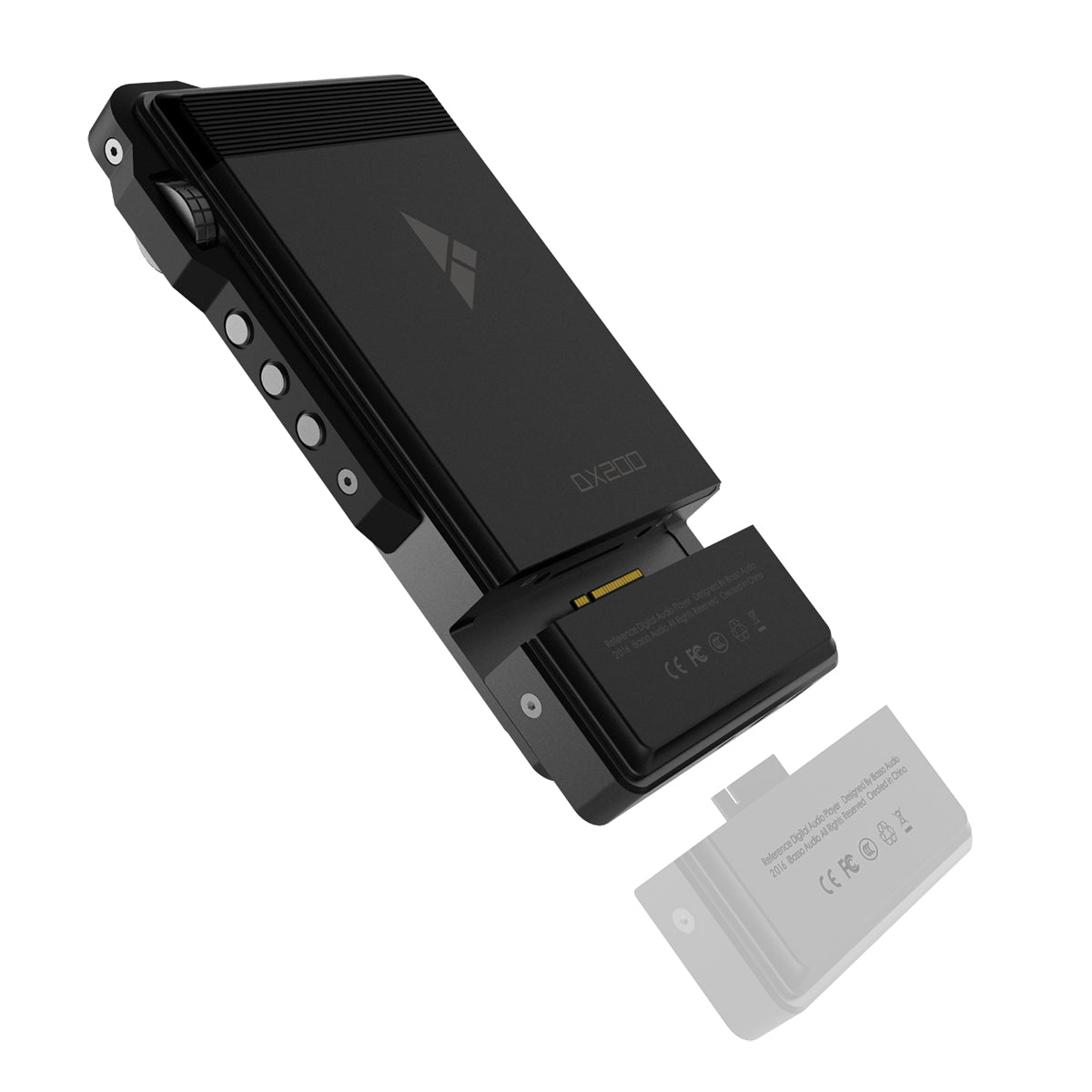

AMP8 is a complete new discrete circle design that is dedicated to the DX150/DX200 and features both a high voltage and current output. High current output is very useful for low impedance multi drivers in-ear monitors

Low VCE transistors are utilized and are manually sorted and paired, providing better consistency and linearity. The low VCE also expands the linearity range.

The transistors used on the buffer stage have a 2700mAh output current rating, which allows the AMP8 to drive IEMs and headphones that require high current with ease.

A pentaconn 4.4mm balanced output port is used. The large double contact area of this socket contact lowers resistance and allows better current transmission.

Specification

Output Voltage: 6.2Vrms

Frequency response:15Hz-45KHz+/-0.3dB

S/N:125dB

THD+N:0.00023%,-113dB(no load@2.5Vrms)

0.00023%,-113dB(300Ω@2.5Vrms)

Output Impedance: 0.38ohm

DNR:125dB

Crosstalk:-120dB

Average play time：7 hours palay time varies with different sample/bit rates, volume and headphone/IEM loads.
